Description

The MeoStar R1 7×56 RD-4C was designed as a specialized low-light hunting riflescope for hunters requiring exceptional brightness and reliability in challenging lighting conditions. The fixed 7x magnification delivers consistent optical performance and simplicity, while the large 56mm objective lens maximizes light gathering for dawn, dusk, and twilight hunting. The illuminated 4C reticle (RD) provides a clear aiming point for fast target acquisition in dim environments. Meopta equipped the scope with MeoBright multi-coated optics, durable waterproof and nitrogen-filled construction, and precision adjustment turrets to withstand demanding outdoor hunting conditions.

Specification:

Magnification 7x (Fixed Power)
Objective Lens Diameter 56 mm

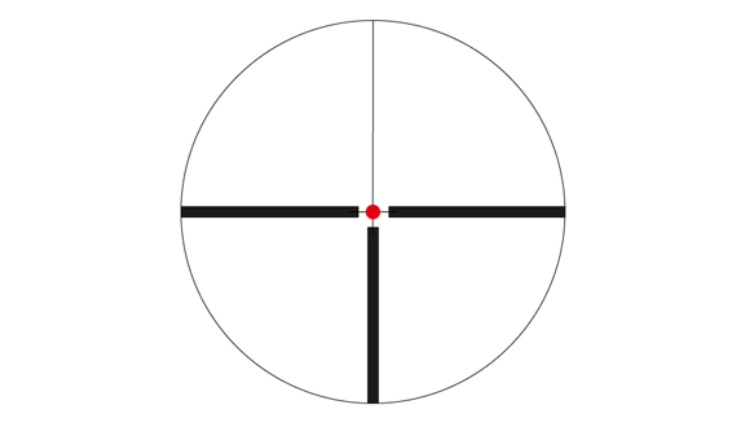

Reticle 4C Illuminated Reticle (RD)
Illumination Red Dot Illuminated
Focal Plane Second Focal Plane (SFP)
Tube Diameter 25.4 mm (1 inch)
Objective Filter Thread M59x0.75
Exit Pupil Diameter 8 mm
Eye Relief 85 mm (3.3 in)
Field of View @100m 5.8 m
Field of View @100yd 17.4 ft
Angular Field of View 3.33°
Diopter Compensation -3 / +3 D
Daylight Transmission 92%
Twilight Transmission 90%
Twilight Factor 19.8
Adjustment Click 0.25 MOA (¼ MOA)
Windage / Elevation Range 151 cm @100m / 54 in @100yd
Parallax Adjustment No (Fixed)
Waterproof Yes
Fogproof Yes (Nitrogen Filled)
Construction Aircraft-grade Aluminum
Length 354 mm (13.9 in)
Weight 524 g (18.5 oz)
