Description

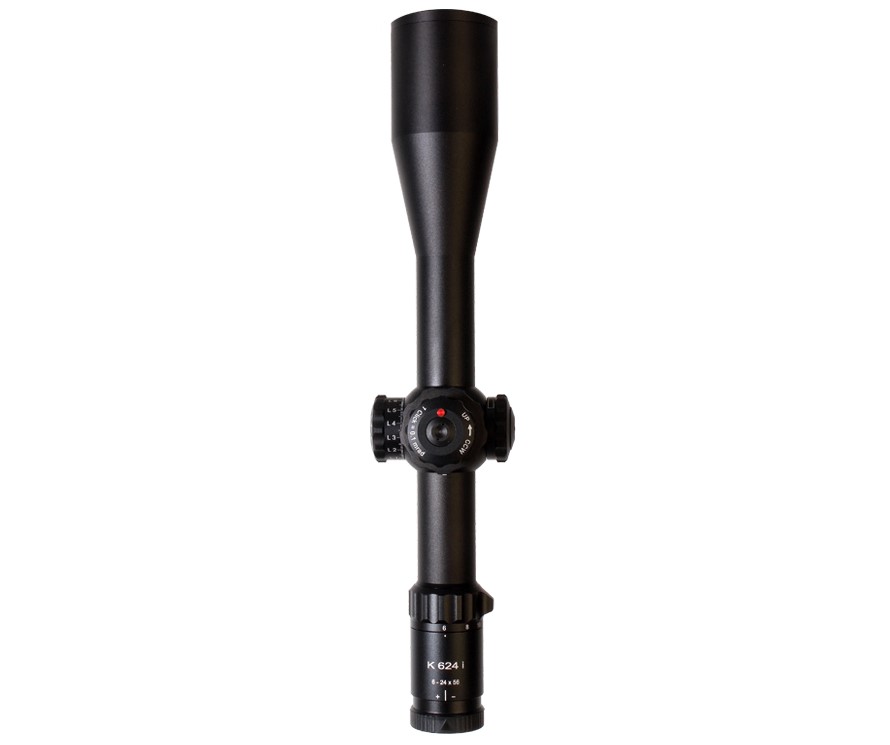

ULTRASHORT PRECISION TOOL

PRODUCT HIGHLIGHTS

– Wide field of view, exceptionally comfortable eyebox and high contrast image
– Precise, clearly defined click mechanism and reliable repeat accuracy
– Optional left or right side windage
– Parallax wheel integrated into the elevation turret (patented) (50 m to ∞)

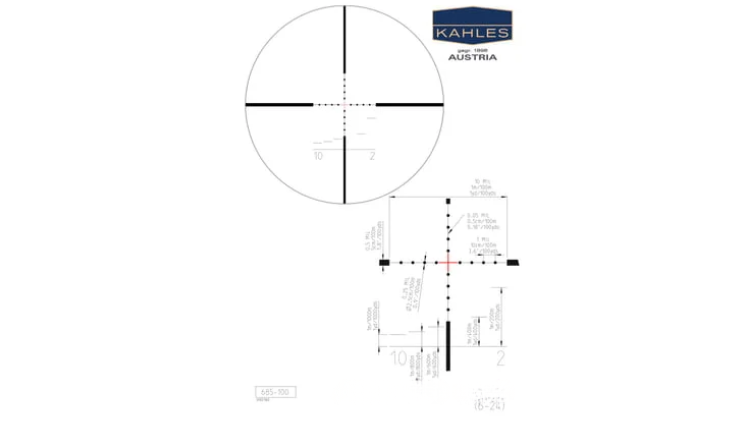

– Precise illuminated reticles in 1 st focal plane

TECHNICAL DATA

Magnification :6 – 24
Objective lens diameter :56 mm
Exit pupil :9.4 – 2.3 mm
Eye relief :90 mm
Field of view :6.8 – 1.7 m/100 m
Diopter compensation :+2 / -3.5 dpt
Twilight factor (DIN 58388) :18.3 – 36.7
Impact correction per click :.1 MRAD | ¼ MOA
Adjustment range (E/W) :2.5 / 1.1 m/100 m
Parallax adjustment :50 m till ∞
Tube diameter :34 mm
Length :405 mm
Weight :950 g
Focal plane :1
Illuminated :Yes
Warranty :10 years
