Description

High-performance Optics

– Multi-coated precision optic
– Special range settings, 100 – 600m in increments of 100m.
– Non gun sensitive for calibers up to 0.50 BMG
– Spray water and dust-proof
– Temperature range for use -40°C to +70°C

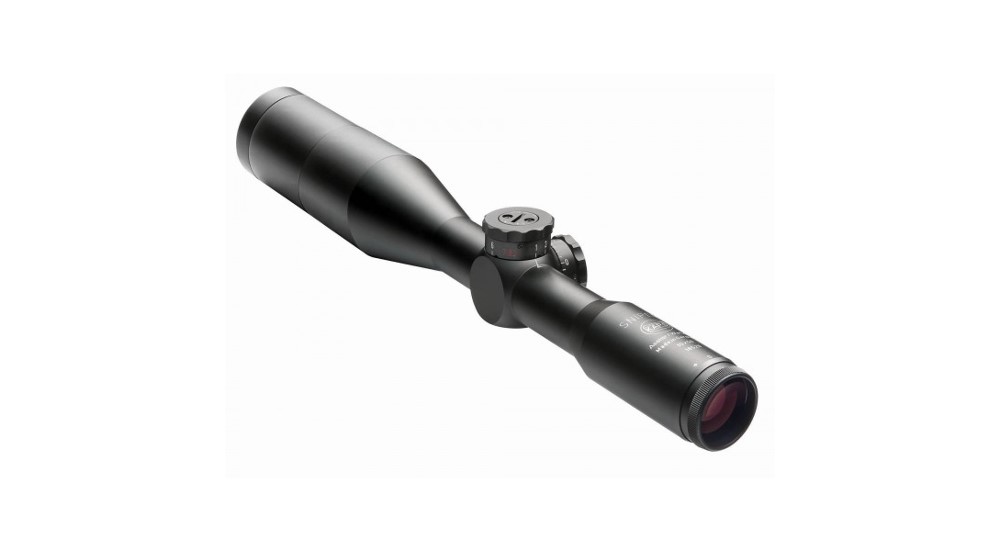

The illustration, left, shows the version with illuminated reticle.

Technical Data

Tactical :2.5-10 x 50
Magnification :2.5 – 10 x
Free objective diameter :49.8 – 50 mm
Objective diameter :57 mm
Free ocular diameter :31.4 – 31.6 mm
Ocular scope diameter :39 mm
Field of vision over 100 m :4.2 – 12.4 m
Field of vision, small magnification :12.4 m
Field of vision, large magnification :4.2 m
Exit pupil :5.0 – 14.4 mm
Eye spacing :90 mm
Diopter compensation :- 2.5 / + 2.0 dpt
Housing material :Aluminum
Reticle in image plane :1st (objective plane)
Illuminated reticle :no
Point of impact adj./click :100 – 600m mm/100 m
Adjustment range :1.4 m
Centre tube diameter :30 mm
Length :370 mm
Weight :700 g
Water-tight :2 m
Mount type :ring mount, available with rail on request
Warranty :2 years full warranty / 25 years for mechanics / sports
Operating manual :German and English
