Description

Fixing with two 3ma or 6×48 screws (to be specified).
Standard for barrels ø 19÷21 mm (.748÷.826).
Height adj. 10,5 ÷ 13,5 mm (.413 ÷ .530).
Center to center distance: 14,3 mm.

COMPONENTS IN THE PACKAGE: 2 SCREWS 6X48, 2 SCREWS 3,5 MA, 2 ELEVATION SPRINGS, 1 SCREWDRIVER, 1 REAR SIGHT

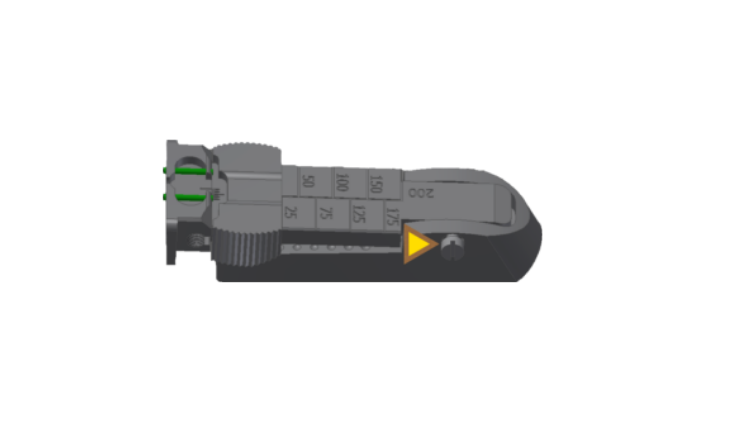

REMOVE THE UNION SCREW BETWEEN THE BASE AND ELEVATOR (SEE ARROW)

ATTACH THE NOTCH BASE TO THE BARREL USING THE SUPPLIED SCREWS (6X48 OR 3.5MA)

PLACE THE SUPPLIED SPRING IN THE SEAT INDICATED BY THE ARROW

WITH YOUR HAND, PRESS THE BLADE ELEVATOR ASSEMBLY ONTO THE BASE AND SECURE WITH THE SCREW REMOVED IN STEP 1 BY SCREWING IT IN UNTIL IT DISAPPEARS

Technical Specifications:

TYPE :01 – Tacca di mira
Sport / Hunting :Yes
Fiber optics :No
Defense/Military :No
