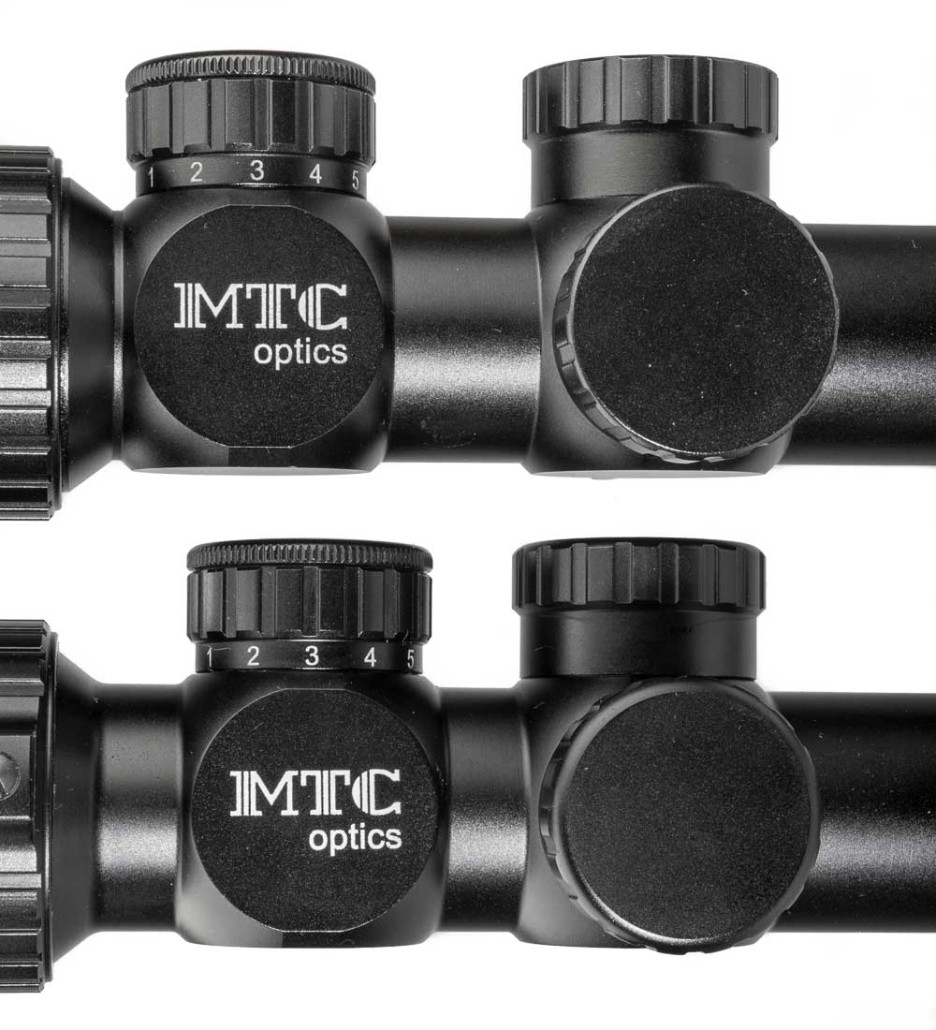

MTC VIPER CONNECT 3-12X32 AMD
1,785.00 د.إ

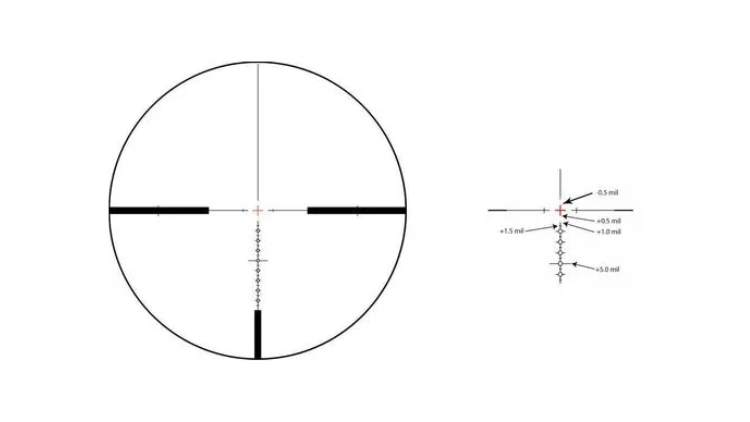

The Advanced Mil Dot (AMD) reticle builds on the success of the SCB reticle. Some users required an alternative product that continued to feature a good number of aiming points but did away with the more complicated reticle markings. The result is the MTC Optics AMD reticle. The reticle combines simplified aimpoints with see through circular milt dot markers, offering fast target acquisition with instand holdover information. Just like the SCB, the 1 mil dot square around the cross gives a rapid acquisition for small fast moving targets. When shooting at small targets or when bullet drop becomes critical the versatility of this reticle becomes clear.
Recent Views
MEOSTAR R1 1-4X22 RDK-DOT

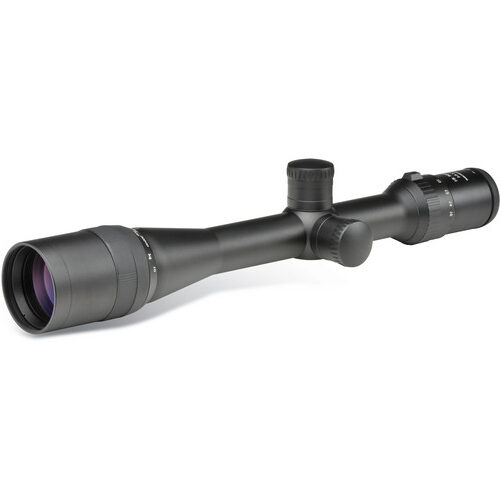

1.00 د.إMEOPTA MEOSTAR R1 4-16X44 MILDOT
4,234.00 د.إMEOPTA MEOSTAR R1 3-12X56-MCWHORTER MV
7,264.00 د.إMEOPTA MEOSTAR R1 3-12X56-4B
3,602.00 د.إMEOPTA MEORED X MINI
1,379.00 د.إ
Description
Technical Parameters:
Magnification 3-12x
Objective Lens – 32mm
Field of view (feet@100yds) – 20.3m/60.9ft ~ 5.2m/1.56ft

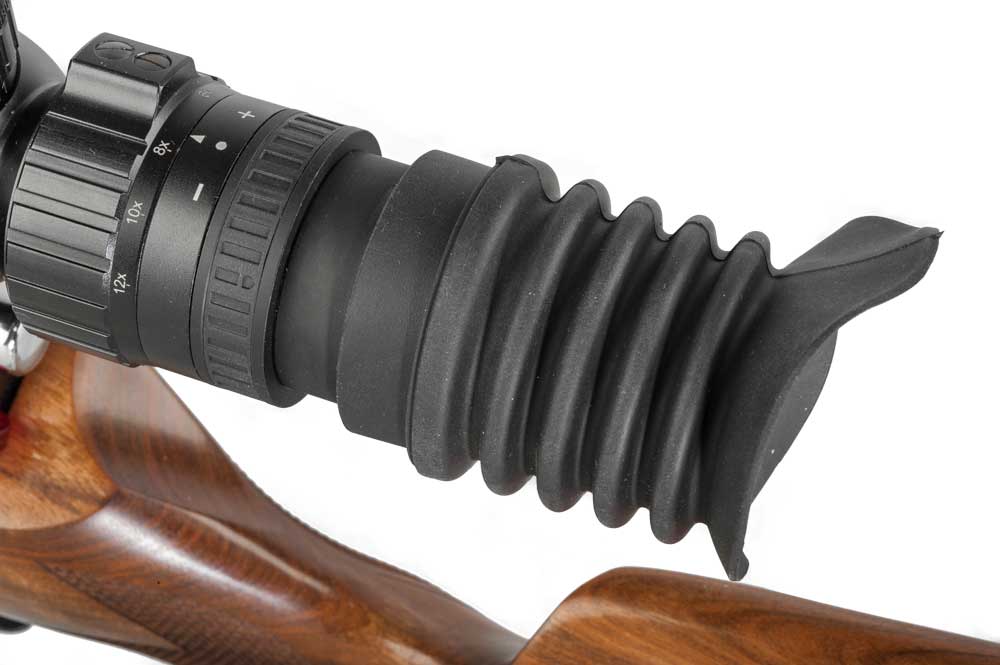

Diopter Adj – +/-2
Eye Relief – 17mm
Parallax Setting – 10yds -infinity
Adj per click – 1/4″:1 click @ 100 yards
Max turret adjustment – 120MOA
Clicks per one turret revolution – 48
MOA per one turret revolution – 12
Impact point correction in one click @ 100m – 0.73cm
Tube – 30mm
Illuminated reticle with separate on/off and brightness control
Length – 287mm
Weight – 650g
Reticle position – Second Focal Plane
Reticle type – SCB2
Additional information
| Brand | Mtc |
|---|









Reviews
There are no reviews yet.
