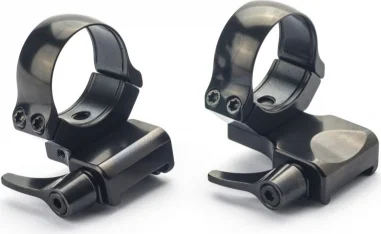

Description

Key Features :

19 mm Dovetail (Prism) Fit: Engineered precisely for the wider 7$19text{mm}$ dovetail rails found on popular rifle models (e.g., CZ 550, CZ 557, ZKK series), ensuring a perfect, non-slip lock-up under heavy recoil

Integrated Extension: Features an extended front ring position, solving common eye relief issues by moving the scope forward. This is essential for proper head placement, especially with scopes that have large objective bells or for long-action rifles.

Quick-Release (QR) System: The robust lever mechanism allows for lightning-fast attachment and detachment without the need for tools. This is ideal for cleaning or quick swaps, though re-zeroing or a confirmation shot is generally recommended with Roll-Off mounts.

30 mm Scope Compatibility: Accommodates a vast range of modern Optics, including tactical, hunting, and specialized scopes with a standard 30 mm main tube diameter.

Medium Height (H15): The 15 mm height (from the top of the dovetail to the scope’s centerline) provides a moderate clearance, perfect for most scopes with up to $50text{mm}$ objective lenses, while maintaining a comfortable cheek weld.

Built-in Windage Adjustment: The design of the Roll-Off system often allows for fine windage adjustments during mounting, giving the user an extra degree of control to center the scope’s reticle before firing.

High-Grade Steel Construction: Precision CNC-machined from solid steel and finished with a durable black oxide, providing superior recoil resistance and a 10-year manufacturer’s warranty.

Technical Specifications :

Specification :Detail

Ring Diameter :30mm

Rail Compatibility :”19mm Dovetail/Prism (e.g., CZ 550/557)”

Mounting Height (H) :15mm (Medium)

Mounting Style :Roll-Off with Extension

Attachment : Quick-Release (QR) Lever

Material :High-Grade CNC Machined Steel

Product SKU :055-19-30-15-R
