Description

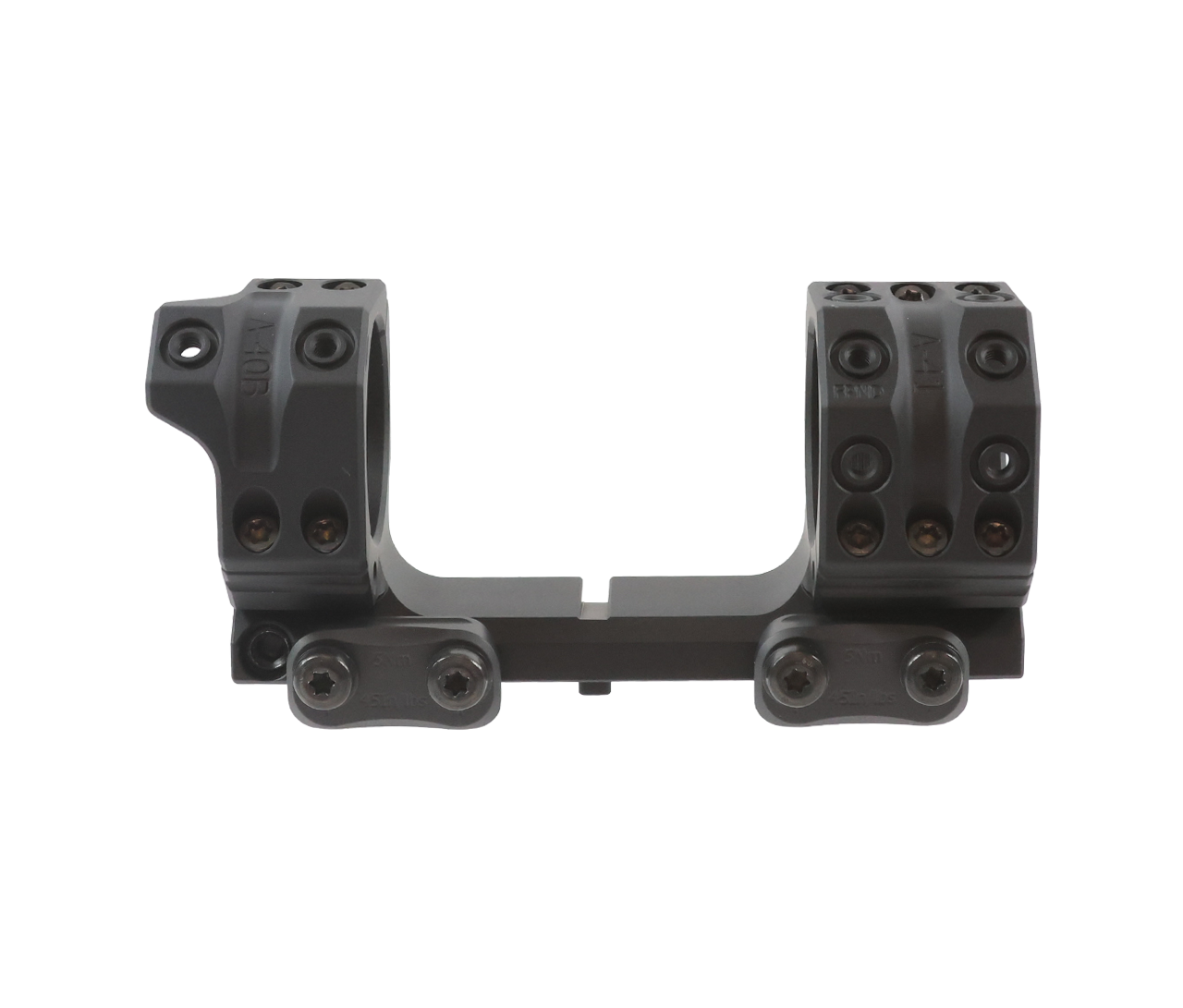

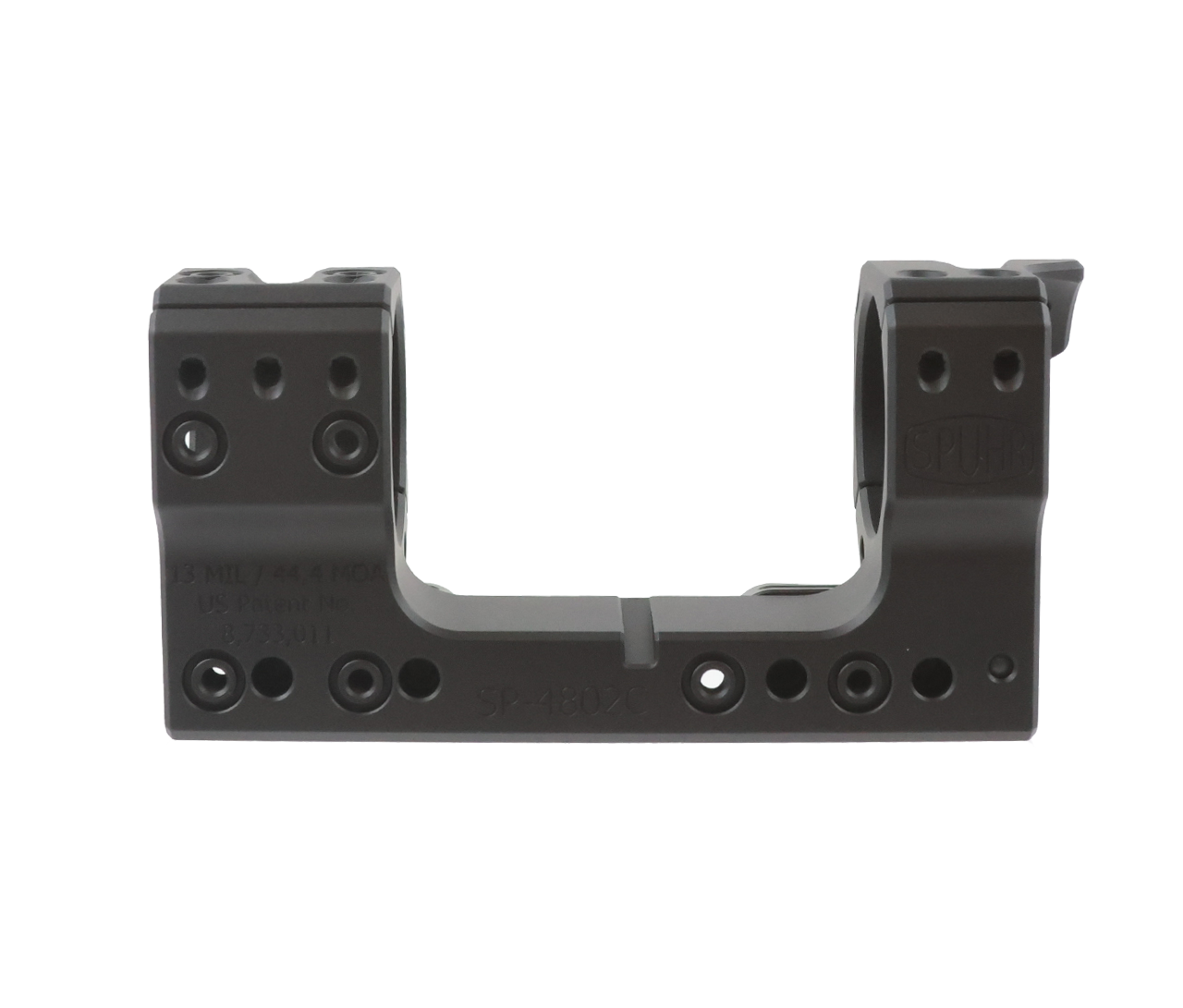

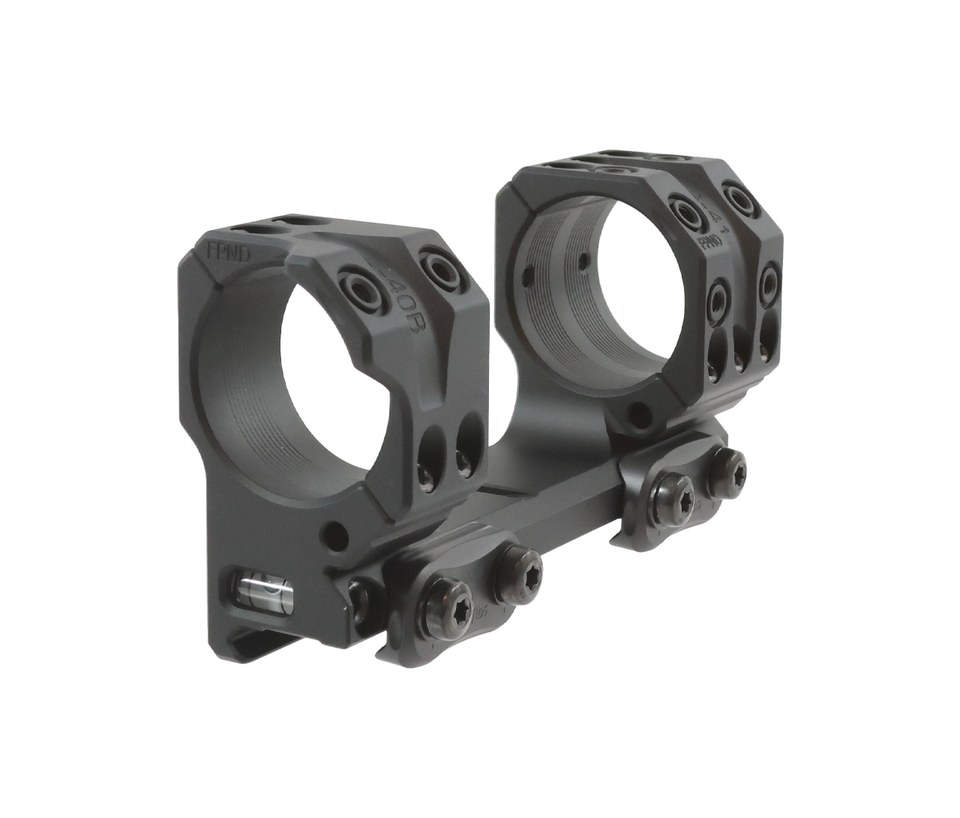

This mount features a critical 13 MIL (Milliradian) forward inclination. By incorporating this aggressive cant, the mount preserves a significant portion of the scope’s internal elevation adjustment, allowing the shooter to dial in corrections for targets far exceeding the range limitations of 0 MOA mounts. The 38mm (1.5″) height provides excellent clearance for large objective lenses and accessories.

Key Features:

Feature :Detail,Benefit for the Customer

Design Generation :Gen3,”Represents the latest design for enhanced strength, rigidity, and optimal performance.”

Ring Diameter :Ø34mm,”Standard fit for high-end, large-tube long-range and tactical riflescopes.”

Cant / Inclination :13 MIL,”Maximizes elevation travel, essential for preserving turret clicks needed to engage targets at extreme distances.”

Mount Height :”38 mm (1.5″”)”,Medium-High Height provides excellent clearance for objective lenses up to 60mm and a comfortable cheek weld.

Mounting Standard :Picatinny (MIL-STD-1913),Ensures robust and repeatable mounting on any standard Picatinny rail.

Integrated Interface :SPUHR Interface (On Top/Sides),”Accepts various SPUHR accessories (level, angle cosine indicator, mini red dot) directly onto the mount.”

Unique Feature :Bubble Level,Precision machined reference surfaces aid in leveling the scope to the mount and the rifle.

Specifications:

Manufacturer: SPUHR

Model: ISMS Gen3

Ring Diameter: 34 mm

Cant: 13 MIL (Milliradian)

Mount Height: 38 mm (1.5″)

Mounting Type: Picatinny / MIL-STD-1913

SKU: SP-4802CM
