Description

The A40EL features a 40mm/F2.0 lens, a 4K UHD detector, and an integrated 1000m laser rangefinder, providing hunters exceptional precision and a suitable field of view for pest control or small game hunting. An optional IR torch enhances nighttime performance.

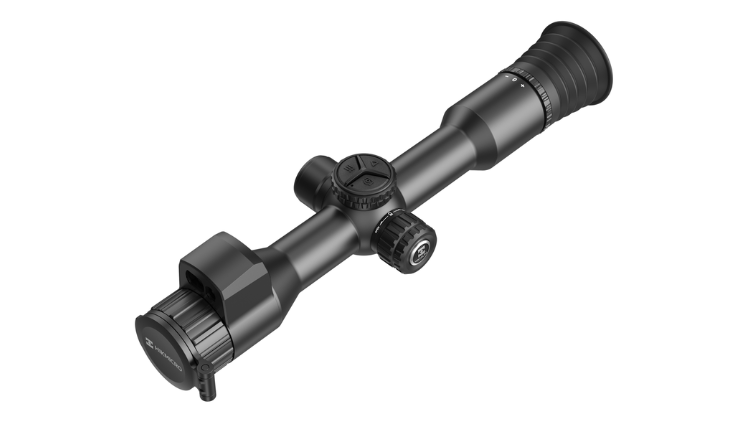

The HIKMICRO ALPEX 4K Lite redefines minimalism for scope. At just less than 500g and 25% slimmer than standard optics, the 30mm tube form factor ensures effortless mounting on any air rifle. Built with magnesium alloy, it’s engineered for agility—perfect for stalking pests in tight spaces or carrying across vast farmlands.

A 40mm F2.0 large-aperture lens meets a 1920×1080 HD display, working in sync with the 3840×2160 4K CMOS sensor to deliver uncompromised clarity. This is observation redefined: where precision optics, computational imaging, and battlefield-grade displays unite to show you what naked eyes can’t.

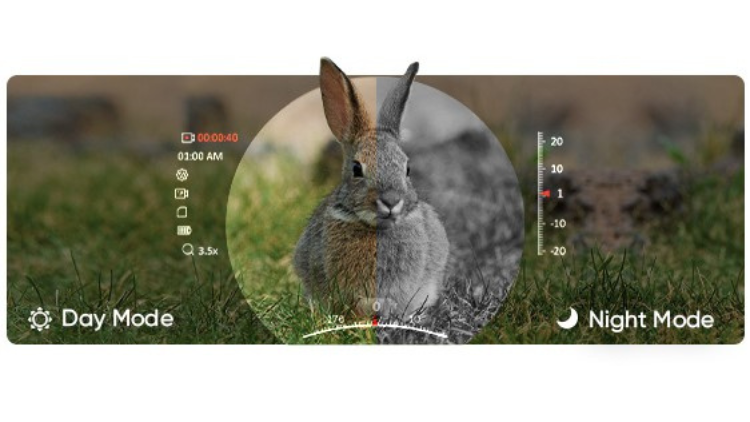

A 4K CMOS sensor paired with adaptive low-light enhancement delivers unmatched detail in ALPEX 4K Lite digital day & night vision scope, even in dawn/dusk conditions. Switch effortlessly between day and night modes, all while enjoying stunning 4K resolution. From the subtle movement of a rabbit’s ear at dusk to the reflective eyes of a rat in pitch darkness, every critical detail is rendered with forensic-level precision—because ethical hunting demands nothing less.

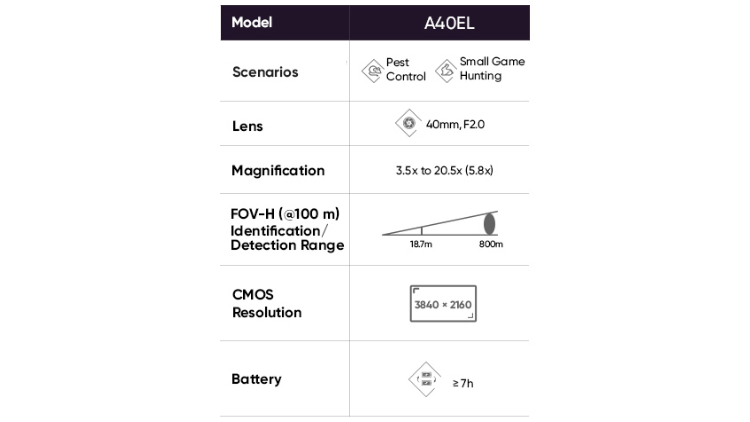

Specification:

Audio Recording Yes
Ballistic Calculation Yes
Battery Operating Time 7 7.5 hours of Continuous Running (@25°C, Hotspot off)
Battery Type One Rechargeable Lithium Battery (Internal), One Replaceable and Rechargeable18650 Battery (External)
Capture Snapshot Yes
Click Value 1 click = 1cm @ 100 m
Detection Range Day 800m
Dimension 280.7 mm × 86.1 mm × 66.3 mm (without eyepiece)
Diopter (Range) -5 D to 5 D
Display 1920 × 1080, 0.49 inch, OLED
Exit Pupil 6 mm
Eye Relief 45 mm
Field of View 10.7° × 6.1° / 18.7 m × 10.1 m @ 100 m
Frame Rate 50 Hz (4K), 100 Hz (1080P)
Freeze Zeroing Yes
General
Hotspot Yes
Image Display
Image Mode Day, Night, Auto, Green, Yellow
Laser Rangefinder
Lens (Focal Length) 40 mm, F2.0
Magnification 3.5× to 20.5× (5.8×) Support continuous zooming and 0.5×, 1×, 2×, 3×, 4× optional step value
Main
Max. Measuring Range 1000 m
Max. Recoil 1000 g/0.4 ms
Max. Resolution 3840 × 2160
Measurement Accuracy ±1 m
Min. Focusing Distance 2m
Min. Measuring Range 3 m
Mounting Standard 30 mm
PIP Yes
Power Supply
Power Supply 5 VDC/2 A, USB Type-C Interface Only internal battery support direct charge
Protection Level IP67
Recoil-activation Recording Yes
Record Video On-board Video Recording
Record Video Resolution 1920 × 1080
Safety Class for Laser Class1
Standby Mode Yes
Storage Built-in EMMC (32 GB)
System
Wavelength 905 nm
Weight 474g without External Battery
Working Temperature -30°C to 55°C (-22°F to 131°F)
Zeroing Profiles 5
