Description

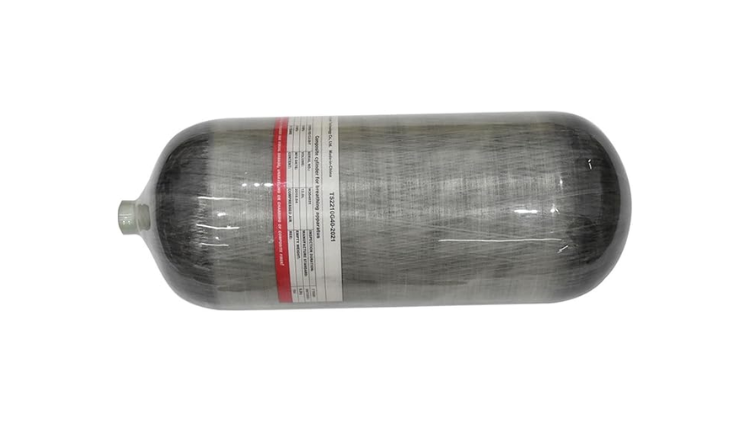

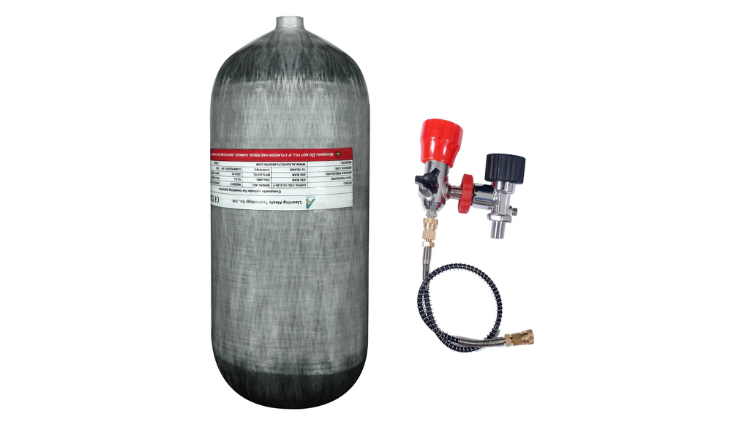

The CHANG-12L is a flagship high-volume air storage solution designed for extended field use and high-demand airgun platforms. Utilizing a precision-machined 6061 aluminum liner and multi-axis T700/T800 carbon fiber filament winding, this tank provides a superior strength-to-weight ratio compared to traditional steel or aluminum cylinders. The included “Integral Fill Station” valve features a large, easy-to-read luminous pressure gauge, a flexible high-pressure micro-bore hose, and a standard foster quick-disconnect fitting.

Specifications:

Water Capacity: 12.0 Liters

Working Pressure: 300 Bar (4500 PSI)

Test Pressure: 450 Bar – 500 Bar

Material: T700/T800 Carbon Fiber & 6061 Aluminum Liner (Type III)

Dimensions: Approx. 565mm (Height) x 205mm (Diameter)

Empty Weight: Approx. 7.4 kg (Cylinder only)

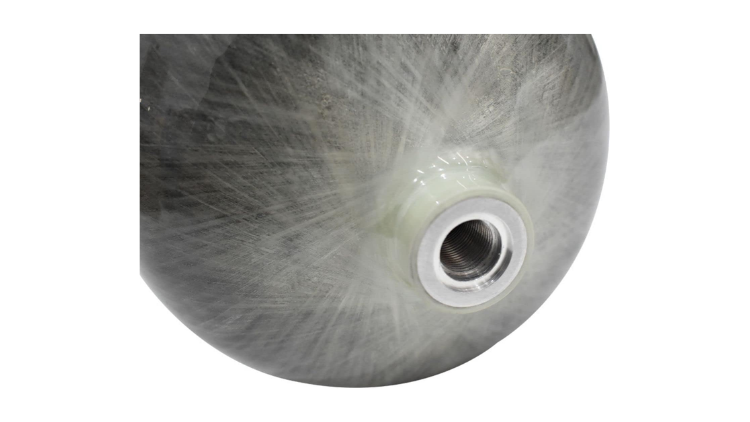

Thread Interface: M18 x 1.5

Service Life: 15 Years
