Description

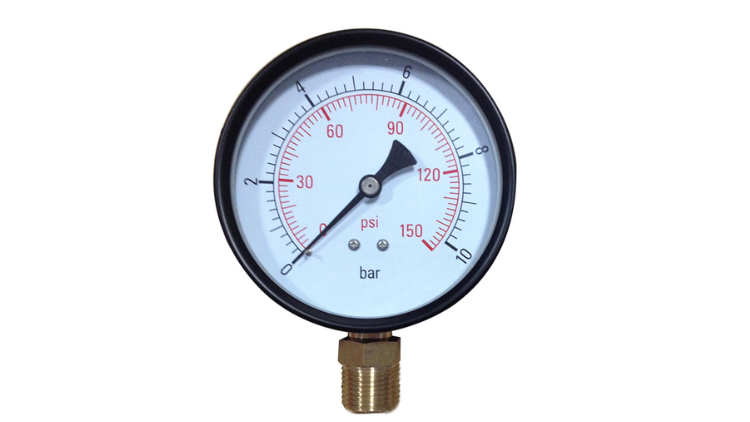

The CZGAUGE-B is a heavy-duty industrial pressure gauge engineered by Changzhou Kaibei for reliability in demanding conditions. The unit is housed in a robust, matte-black painted carbon steel case that provides excellent resistance to environmental wear and mechanical impact. Internally, it utilizes a high-sensitivity copper alloy Bourdon tube and a precision movement mechanism to ensure accurate readings (Accuracy Class 1.6 or 2.5). The “Black Edition” design is specifically favored for tactical airgun setups and specialized industrial machinery where low reflectivity and high durability are required.

Specifications:

Case Material: Painted Carbon Steel (Matte Black finish)

Pressure Range: 0–400 Bar / 0–6000 PSI (standard configuration)

Dial Diameter: Typically 25mm, 40mm, or 63mm (model dependent)

Connection: Bottom or Back mount (1/8″ NPT/BSP or M10*1)

Lens: High-transparency Acrylic or Toughened Glass
Working Temperature: -40°C to 70°C
