Description

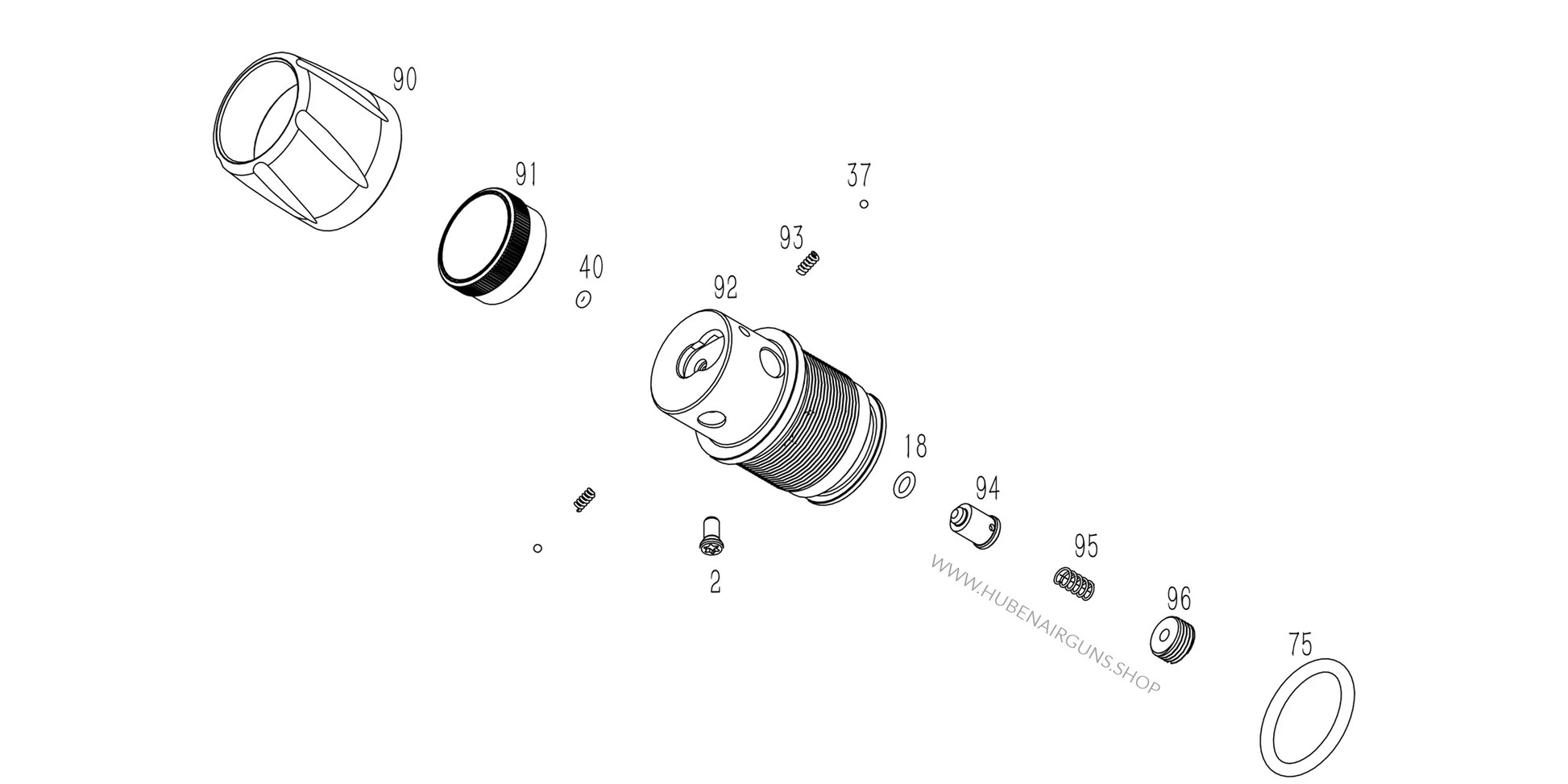

Function: This spring works directly with the High Pressure Fill Stop (Part #94). Its crucial role is to provide the necessary compressive force to keep the Fill Stop valve closed and sealed against the high internal air pressure.

Importance: It ensures that air is retained safely inside the air cylinder after the filling probe is removed, preventing leakage from the fill port.

Key Features:

Product: Small Compression Spring

Specifications: 4 mm inner diameter, 12 mm length, 0.5 mm wire thickness (approximate)

Compatibility: Huben K1 Air Rifle Filling Port (Acts on the Fill Stop Valve)

Purpose: Provides the force required to seal the high-pressure fill port after charging.
