Description

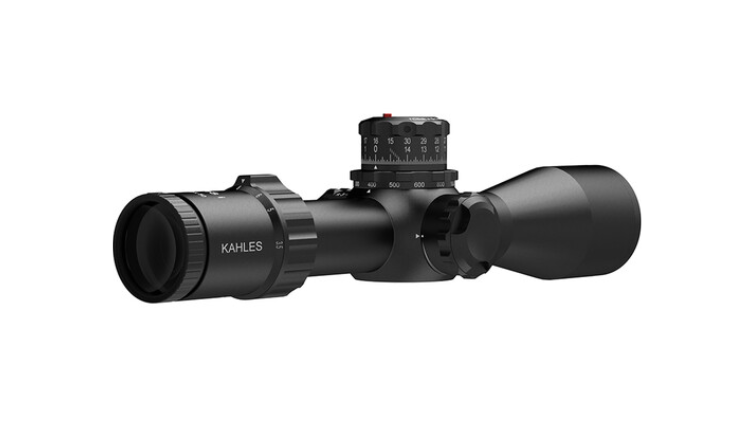

The Kahles K318i series is engineered as an ultrashort precision riflescope, combining high optical performance with compact dimensions. It delivers exceptional image contrast and a wide field of view while maintaining reliable mechanical precision and repeatable click adjustments.

The scope features illuminated reticles positioned in the first focal plane, ensuring accurate scaling across the full magnification range. Kahles also integrates its patented TWIST GUARD windage protection and a parallax adjustment built directly into the elevation turret, allowing quick and precise focus adjustments from approximately 25 m to infinity.

Specifications:

Magnification: 3.5–18×
Objective lens: 50 mm
Tube diameter: 34 mm

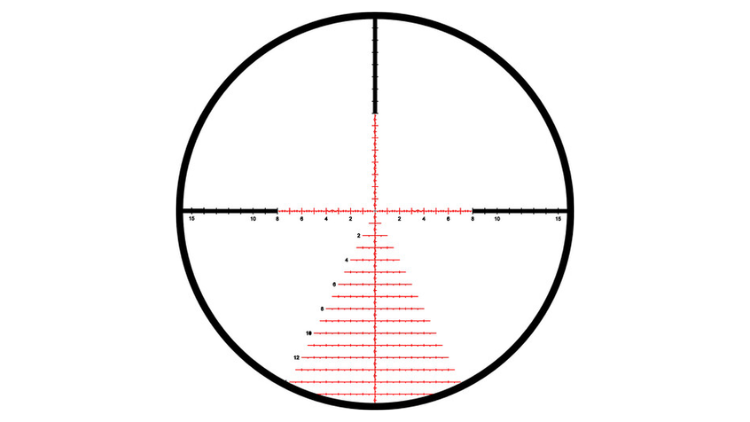

Reticle: SKMR4 – First Focal Plane (Illuminated)
Click value: 0.1 MRAD per click
Adjustment range: ≈30 MRAD elevation / 15 MRAD windage
Parallax adjustment: 25 m to infinity
Eye relief: ≈92 mm (≈3.6 in)
Field of view: ≈27.8 – 5.5 ft @ 100 yd (9.3 – 2.0 m @ 100 m)
Length: ≈12.3 in (≈31.3 cm)
Weight: ≈33.2 oz (≈940 g)
