Description

The K540i series is designed as Kahles’ next-generation precision optic for long-range and competition shooting. It features a powerful 5-40× magnification range and a 56 mm objective lens, delivering high-resolution images and strong low-light performance even at very high magnifications. The new optical design provides up to 40 % wider field of view compared with earlier models and maintains excellent image quality across the entire zoom range.

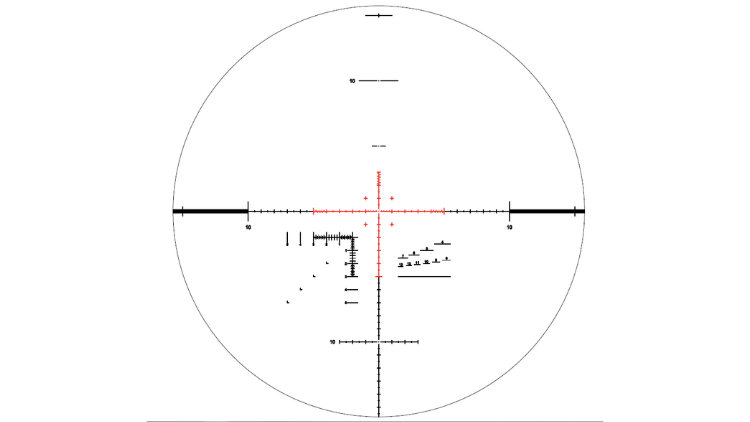

This configuration includes the MSR2 reticle in the first focal plane, allowing accurate ranging and holdovers at any magnification. The scope also offers 0.1 MRAD click adjustments, reliable repeatability, and a 36 mm maintube that supports large internal adjustment ranges for long-distance dialing.

Kahles integrates the parallax adjustment into the elevation turret and includes its TWIST GUARD windage protection system, helping prevent accidental adjustments during use. These features, combined with the ergonomic turret design and wide field of view, make the K540i suitable for PRS, tactical shooting, and extreme long-range applications.

Specifications:

Magnification: 5–40×
Objective lens: 56 mm
Reticle: MSR2 (First Focal Plane, illuminated)
Click value: 0.1 MRAD
Tube diameter: 36 mm
Parallax adjustment: 20 m to infinity
Eye relief: ≈92 mm
Field of view: ≈10.2 – 1.3 m / 100 m
Length: ≈408 mm
Weight: ≈1110 g
