Description

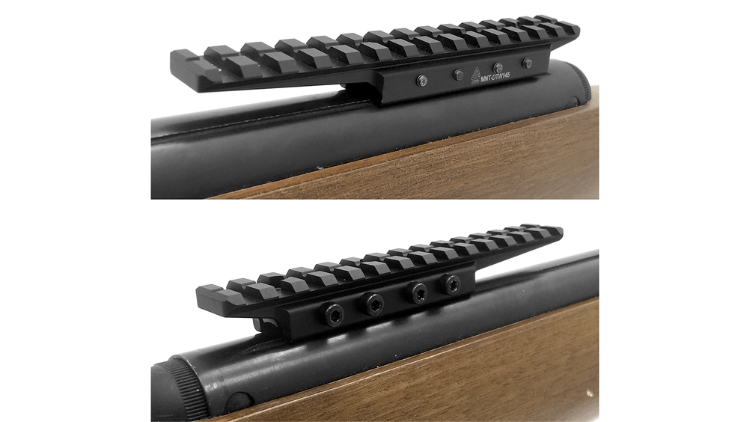

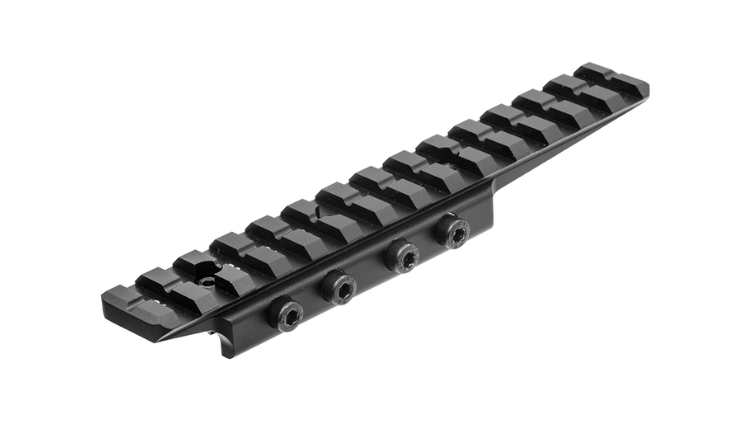

– Dovetail to Picatinny/Weaver Cantilever Rail Adaptor
– 5.7″ Picatinny Top Rail with 14 Slots to Provide Flexible Eye Relief Adjustment and Mounting Flexibility of Various Optics
– Fits 9mm – 11mm Airgun/Shotgun Dovetail Rails

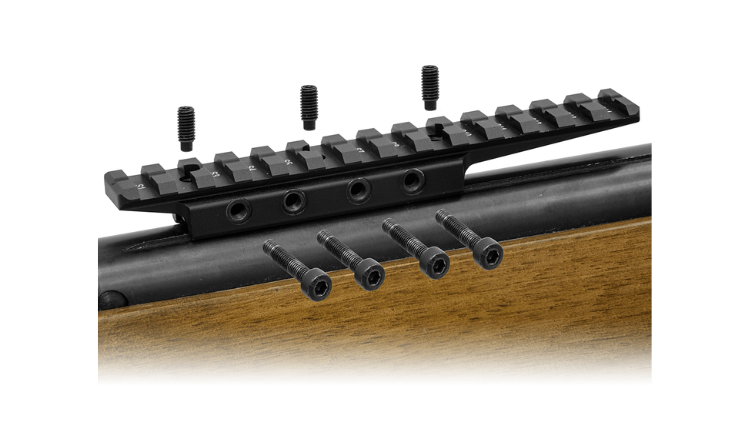

– Comes with 4 High Strength Screws and Adjustable Recoil Resistant Stop Pins Which Ensures Solid Locking and Zero Holding and is Designed to Resist Bidirectional Recoil Force
– Easily Slides On and Universally Fits Both Flat & Rounded Dovetail Receivers
– Precision Machined from Aircraft Aluminum and Finished with a Matte Black Hard Coat Anodize
– Saddle Height is 0.59″

Specifications:

Color(s) Black
Compatible with Round or Flat Dovetail Receiver
Locking Mechanism Hex Screw
Materials Aluminum
Mount Type Dovetail
Patent US PAT. 10352656 | EU PAT. EP3196588
Picatinny Slots 14
Required Dovetail Space 2.97 in (75 mm)
Surface Finish Anodized
Torque Specification 25 in-lbs (3mm Hex) | 15 in-lbs with stop in hole, 5 in-lbs without (2.5 mm hex)
Weight 2.4 oz (68 g)
