Description

Key Features & Specifications:

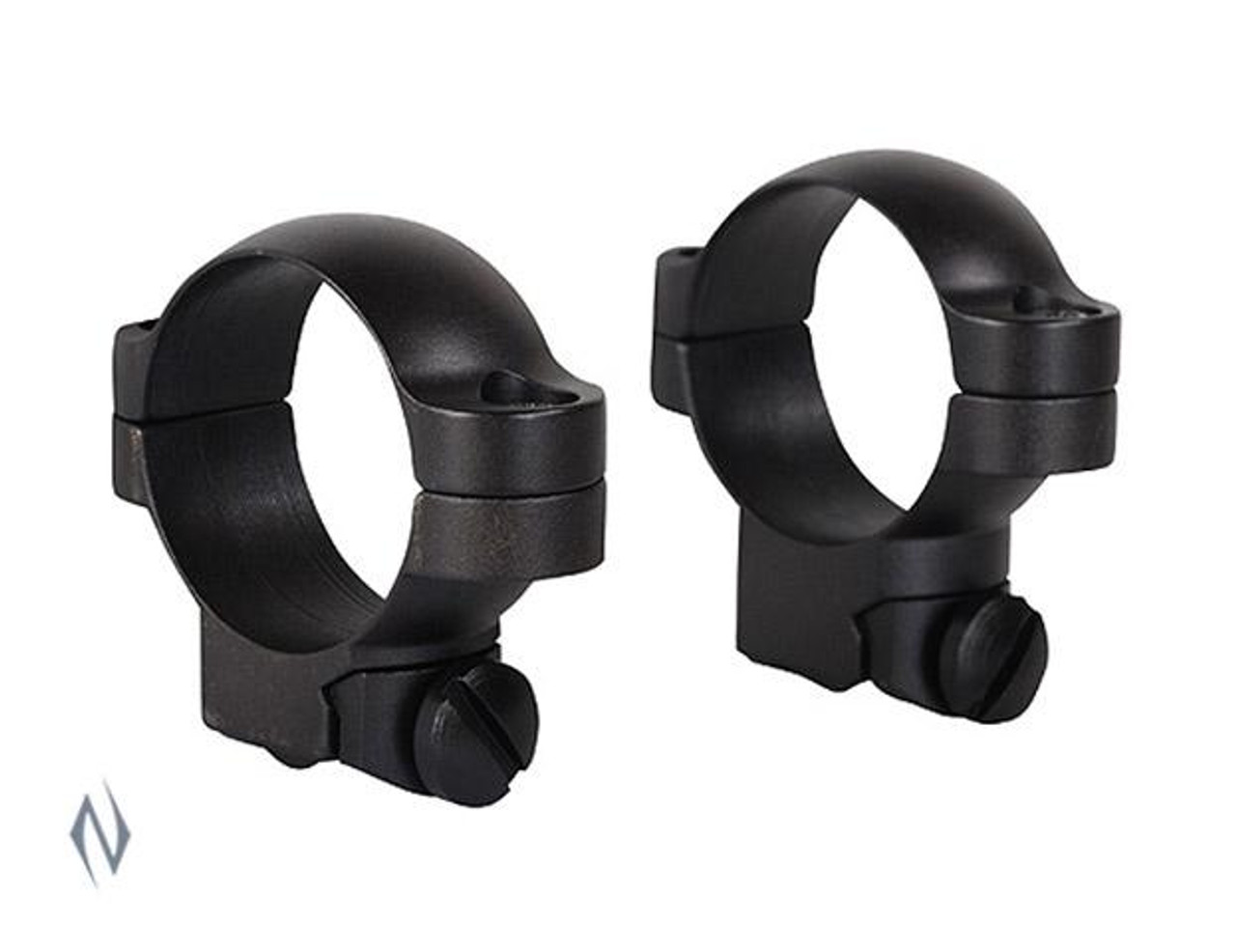

Purpose-Built Fit: Specifically engineered to mount directly onto the Ruger M77 receiver, utilizing the factory mounting system (dovetail/integral lugs)

Scope Compatibility: Designed for riflescopes with a 30 mm main tube diameter.

Medium Height: Provides a Medium mounting height, which is typically best suited for objective lens diameters between 42mm and 45 mm on standard barrel profiles.7 This ensures the objective bell clears the barrel without touching.

Superior Construction: Machined from solid steel to offer superior integrity and tighter tolerances than standard cast rings, ensuring rock-solid dependability.

Finish: Matte Black finish to reduce glare and match most rifle aesthetics.

Reliability: Engineered for tack-driving repeatable accuracy and built to withstand the recoil of standard to magnum calibers.

Torque Specs: Keeper Clamp Torque:45 in-lbs | Ring Top Screw Torque: 28 in-lbs.

Made in the USA: A hallmark of Leupold quality and commitment.

Expert Note: These Ringmounts are a high-quality upgrade over many factory-supplied rings and eliminate the need for separate bases on the M77 platform.
