Description

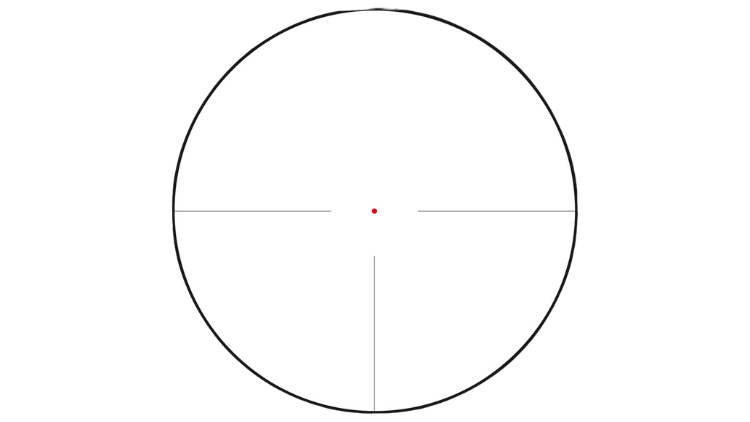

The MeoStar R2 1-6×24 RD K-Dot2 was designed for hunters and shooters who need speed, wide field of view, and fast precision in dynamic shooting environments. Its true 1x magnification enables both-eyes-open shooting for rapid target acquisition, while the 6x magnification range supports accurate shooting at medium distances. The K-Dot 2 illuminated reticle uses an illuminated central aiming dot with surrounding reference lines for fast sight picture acquisition during driven hunts and dangerous game scenarios. Meopta equipped the scope with MeoLux ion-assisted lens coatings for high light transmission, MeoDrop hydrophobic coating for weather resistance, and MeoShield protective coating for durability. The result is a premium LPVO suited for short-to-medium range hunting, driven hunts, woodland environments, and dangerous game rifles.

Specification:

Magnification 1x – 6x
Objective Lens Diameter 24 mm
Reticle K-Dot 2 Illuminated Reticle (RD)
Illumination Red Dot Illuminated (8 brightness levels)
Focal Plane Second Focal Plane (SFP)
Tube Diameter 30 mm
Exit Pupil Diameter 11 – 4 mm
Eye Relief 98 – 96 mm
Field of View @100m 37.6 – 6.3 m
Field of View Angle 21.3° – 3.63°
Diopter Compensation -3 / +3 D
Daylight Transmission 94.5%
Twilight Transmission 92%
Twilight Factor 4.9 – 12
Adjustment Click 1.5 cm / 100m (0.52 MOA)
Windage Adjustment Range 401 cm @100m / 138 MOA
Elevation Adjustment Range 401 cm @100m / 138 MOA
Parallax Adjustment Fixed @100m
Waterproof Yes
Fogproof Yes (Nitrogen Filled)
Shockproof Yes
Lens Coatings MeoLux™, MeoShield™, MeoDrop™
Length 297 mm
Weight 492 g
Country of Origin Czech Republic
