Description

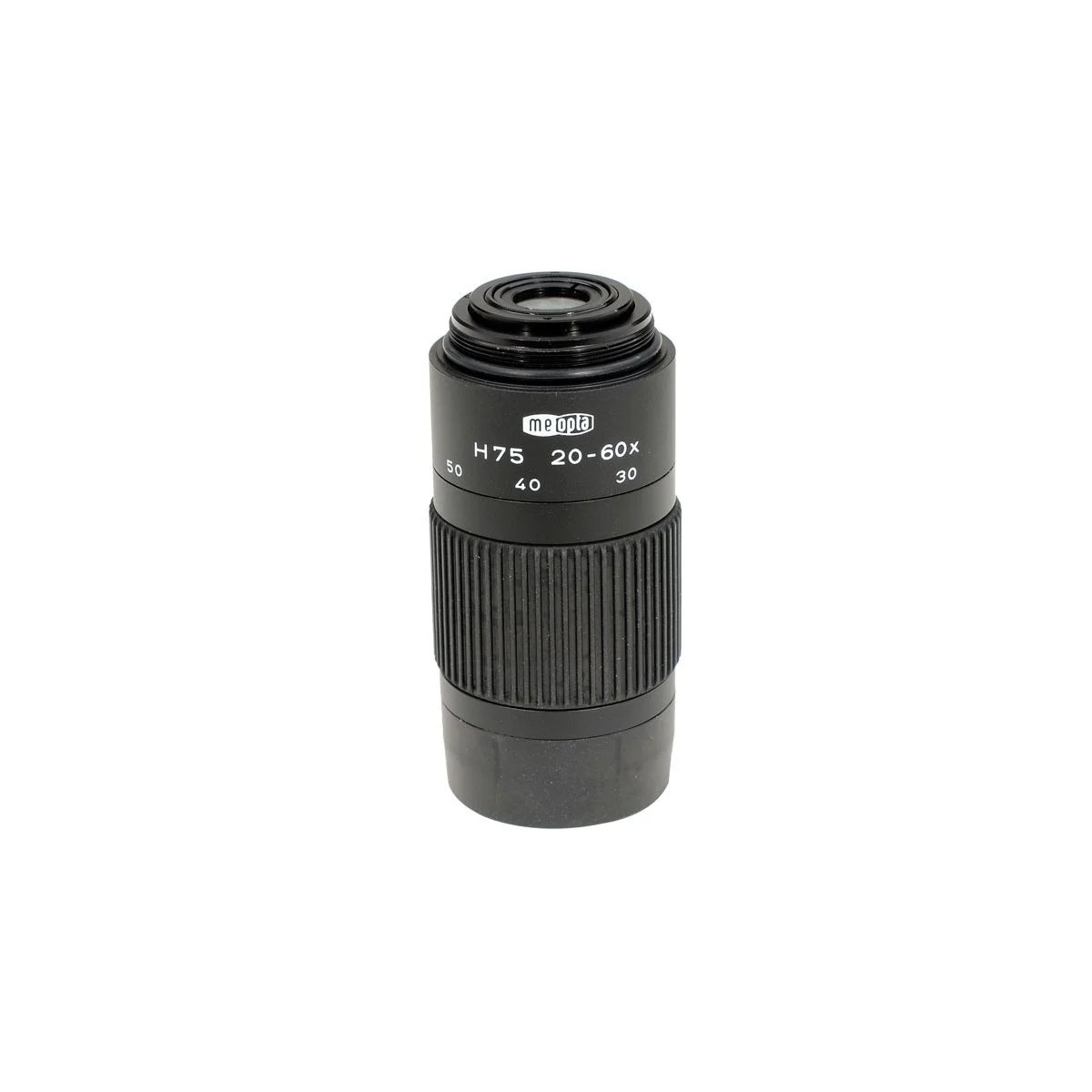

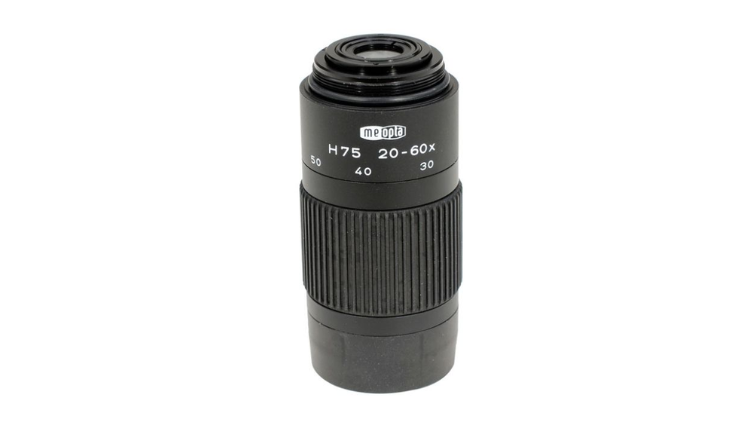

The Meopta H75 20-60x Zoom Eyepiece was developed as a high-performance interchangeable eyepiece for Meopta’s 75mm spotting scopes, particularly the MeoStar S1-75 series. It provides a variable magnification range from 20x to 60x, allowing users to switch between wide-field observation and detailed long-range viewing. Meopta equipped the eyepiece with fully multi-coated lenses, a waterproof and nitrogen-filled fogproof construction, and a soft peel-down eyecup for comfortable viewing. It was widely used for wildlife observation, birdwatching, hunting, and target spotting, especially when paired with the MeoStar S1-75 APO spotting scope body.

Specification:

Compatible Scope MeoStar S1-75 / TGA 75
Magnification 20x – 60x
Apparent Field of View 36° – 54°
Field of View @1000m 31m (20x) – 16m (60x)
Field of View @1000yd 93 ft (20x) – 48 ft (60x)
Angle of View 1.8° (20x) – 0.9° (60x)
Exit Pupil Diameter 3.7 mm (20x) – 1.2 mm (60x)
Eye Relief 15 mm
Relative Brightness 14.1 (20x) – 1.6 (60x)
Twilight Factor 38.7 (20x) – 67.1 (60x)
Lens Coating Fully Multi-Coated
Waterproof Yes
Fogproof Yes (Nitrogen Filled)
Eyecup Type Soft Rubber Peel-Down
Dimensions 42 × 88 mm
Weight Approx. 165 g
Country of Origin Czech Republic
