Description

Key Features :

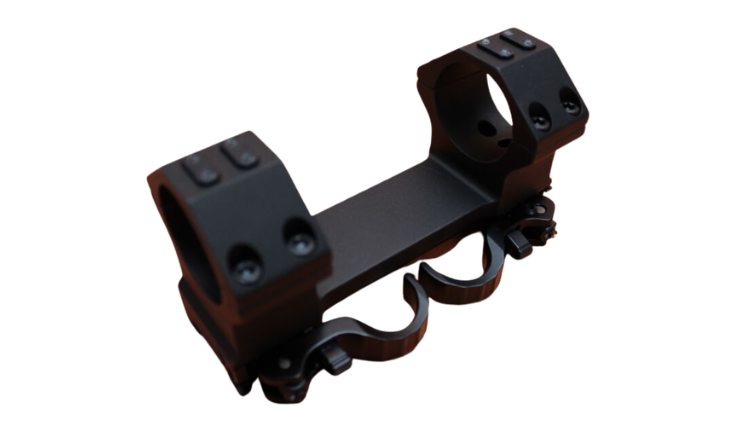

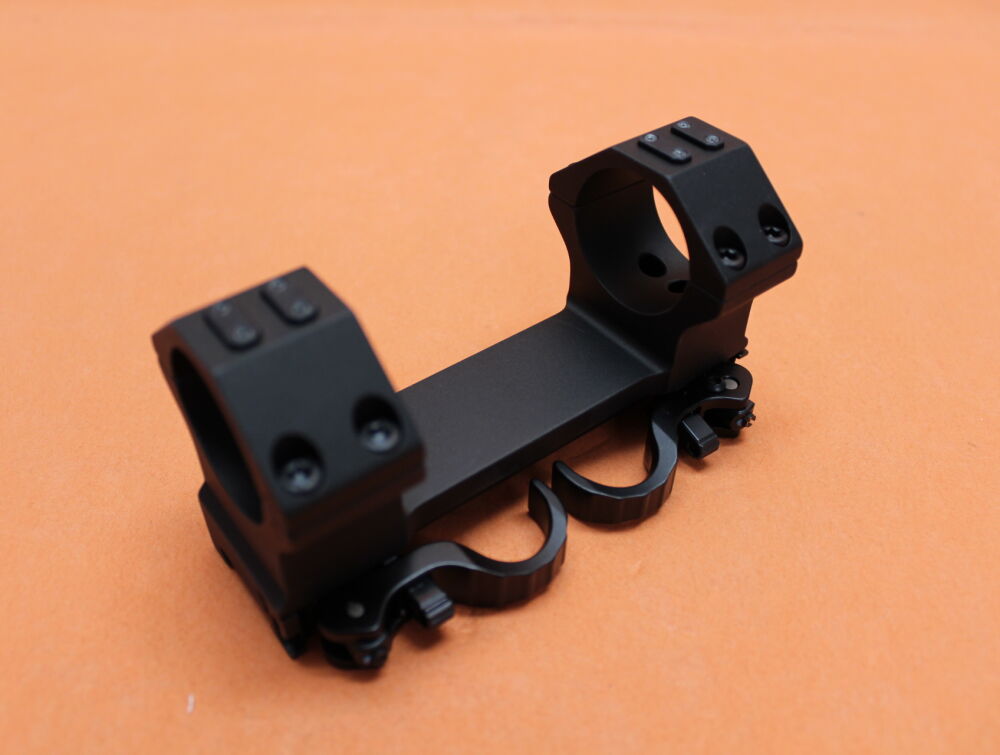

Rifle Platform: Universal fit for any Mil-Std 1913 Picatinny Rail or NATO STANAG 4694 rail system.

Tube Diameter: Optimized for 34mm riflescope tubes, the preferred size for premium long-range Optics.

Inclination (MOA): Features a fixed 20 MOA (Minute of Angle) forward cant to utilize more of the scope’s internal elevation travel at extreme distances.

Clamping System: Secured via robust Nut Attachment (T20xx series). This provides an incredibly strong, vibration-resistant clamp that maintains zero under heavy recoil.

Height: The high profile (~27mm from rail to scope tube bottom) is specifically designed to clear objectives up to 70mm in diameter, which are common on powerful tactical riflescopes.

Construction: Machined from a single block of high-grade aluminum and Mil-Spec hard-coat anodized for extreme durability and corrosion resistance.

Technical Specifications:

Feature : Detail

Ring Diameter : 34 mm

Inclination (Cant) : 20 MOA (For Long-Range Shooting)

Mounting Type : One-Piece Block Mount (Blockmontage)

Rail Interface : Picatinny / MIL-STD-1913

Clamping Mechanism : Heavy-Duty Nuts (Fixed attachment)

Objective Clearance : High Profile – Clears objectives up to 70mm

Origin : Made in Germany by ERA-TAC (Recknagel)
