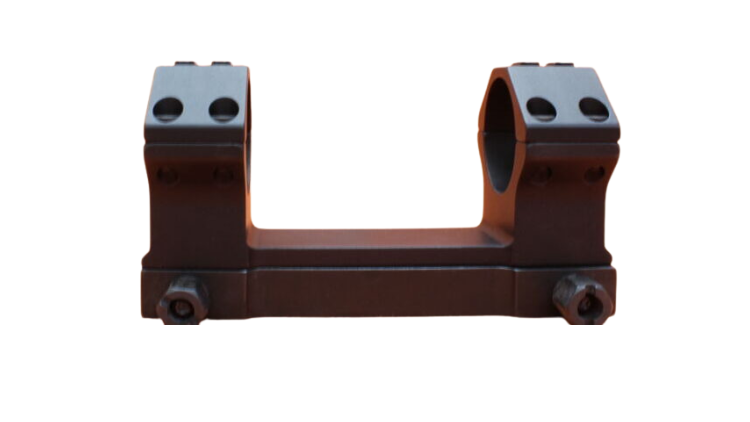

Description

Key Features :

Tube Diameter: Designed specifically for 34mm main tube riflescopes, providing a secure and even clamping force.

Zero Inclination (0 MOA): Provides a 0 MOA / 0 MIL platform, making it ideal for shooting at standard ranges where a flat base is preferred, or on rifles with pre-inclined Picatinny rails.

Superior Clamping: The mount secures to the Picatinny rail using robust hex nuts (T20xx series), ensuring maximum clamping power and a secure hold, even under the heaviest recoil.

Optic Clearance (BH 25mm): Features a 25mm Build Height (BH) from the rail to the bottom of the scope tube. This height typically allows for clearance of scopes with up to a 70mm Objective Lens diameter (depending on the rifle/barrel profile).

Modular Design: The ring caps feature the ERA-TAC Universal Interface system, allowing for the direct attachment of accessories like red dot sights, bubble levels, or rangefinder mounts.

Mil-Spec Quality: Machined from high-grade aircraft aluminum and finished with a Mil-Spec Type III hard-anodizing for superior scratch and corrosion resistance

Technical Specifications:

Feature : Detail

Mounting Style : One-Piece Monoblock (Blockmontage)

Clamping System : Hex Nuts (T20xx Series)

Rail Interface : Picatinny / NATO-STANAG 4694

Ring Diameter : 34 mm

Inclination : 0 MOA / 0 MIL

Build Height (BH) : 25 mm (approx. 0.98 in)

Max Obj. Lens : ≈70mm Clearance

Material : “Aircraft-Grade Aluminum, Hard-Anodized Black”

SKU : T2014-0025

Origin : Made in Germany
