Description

Key Features:

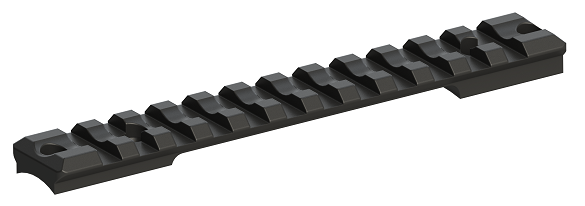

Dedicated Winchester 70 Fit: Specifically designed to perfectly match the receiver contours and factory hole spacing of the Winchester Model 70 Short Action.

True Picatinny Standard: Ensures full compatibility with all MIL-STD-1913 Picatinny and Weaver rings and accessories, offering maximum flexibility for scope placement and eye relief.

One-Piece Stability: The monolithic rail construction increases the rigidity of the mounting system, minimizing flex and maintaining zero under the most demanding conditions

Low Profile: The rail sits at a BH 6.5 mm height, helping to keep your scope low to the bore for a better cheek weld and natural aiming.

Precision Machining: Constructed from high-grade aluminum and finished with durable black anodizing. Comes complete with necessary mounting screws and a wrench for installation.

Specifications:

Feature : Detail

Mounting Style : One-Piece Picatinny Rail

Rifle Model : Winchester Model 70 Short Action (SA)

Material :”High-Grade Aluminum, Black Anodized”

Base Height (BH) : 6.5 mm

Inclination (MOA) : 0 MOA (Standard / Level)

Mounting Dimensions : A-B-C Hole Spacing: 21.84 mm – Center Spread – 21.84 mm (Confirms factory SA
spacing)

SKU : 57050-0024

Origin : Made in Germany
