Description

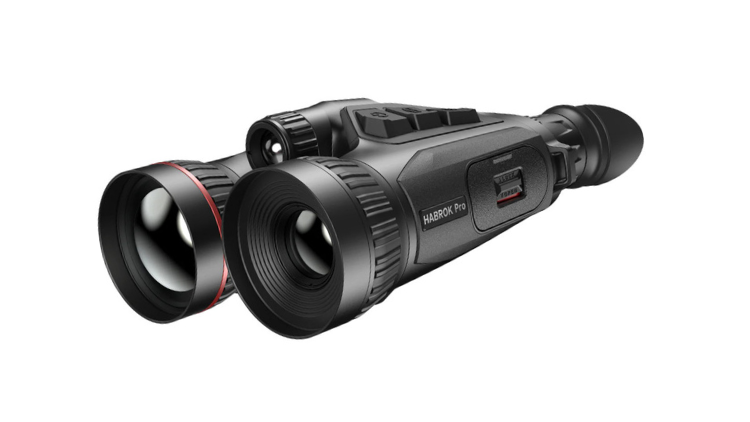

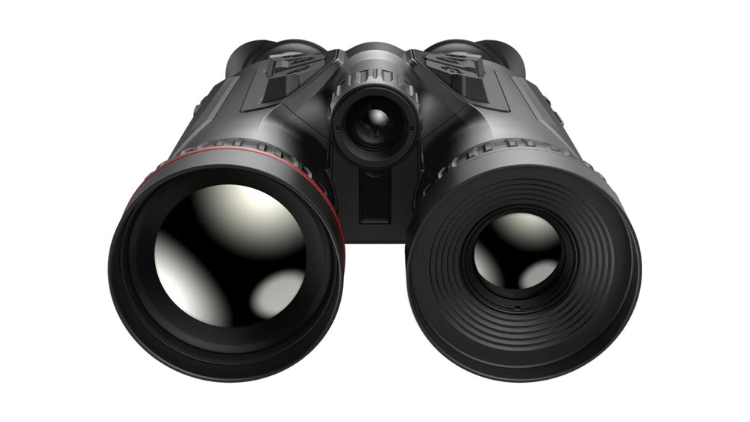

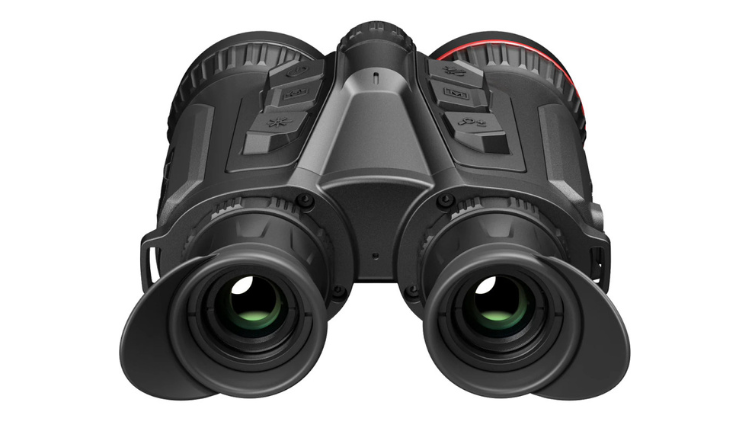

The ergonomic all-in-one design combining cameras, LRF and IR emitter covers every scenario at once.

Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 1280 × 1024
Frame Rate 25 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 18 mK (@25°C, F# = 1.0)
Lens (Focal Length) 60 mm, F1.0
Focus Mode Focus Ring
Detection Range 3100 m
Min. Focusing Distance 3 m
Magnification 2.6× to 26.0× (10×) Support 1× continuous zooming
Field of View(H×V), 14.6°×8.8°/25.6 m×15.4 m
Degrees / m @100 m
Optical Module
Image Sensor 1.88” Progressive Scan CMOS
Max. Resolution 3840 × 2160
Focal Length 60 mm, F2.2
Min. Working Distance 3 m
Focus Mode Focus Ring
Magnification 5.5× to 22.0× (4×)
Field of View (H×V), Degrees/m @100 m 7.3°× 4.1° / 12.6 m × 7.2 m
Smart IR Yes
IR Illuminator Wavelength 850 nm / 940nm
Viewing Range at Night 400 m
Replaceable IR Illuminator Yes
Image Display
Display 0.49 inch, OLED, 1920 × 1080
Palettes Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Exit Pupil 8 mm
Eye Relief 15 mm
Diopter (Range) -5 D to +3 D
Brightness Adjustment Yes
Tone Adjustment Cold, warm
Contrast Adjustment Yes
Zoom Pro Yes
Image Pro 2.0 Yes
