Description

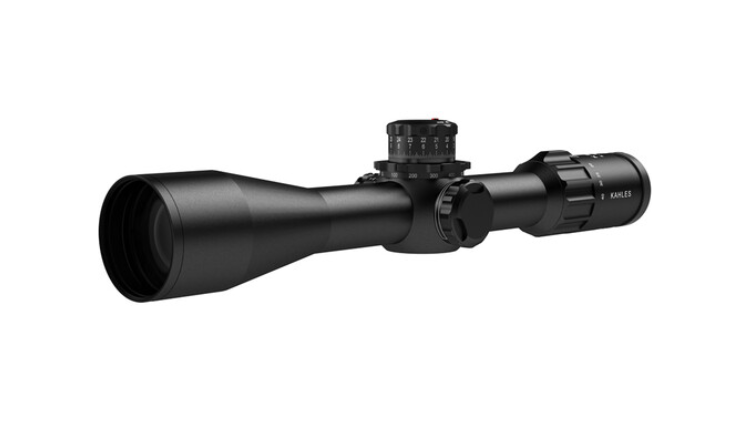

The K540i DLR is designed for professional shooters and precision competitions where fast turret reading and large adjustment ranges are critical. It offers a powerful 5–40× zoom range paired with a 56 mm objective lens, delivering bright, high-resolution images even at extreme magnifications. The scope includes a first focal plane SKMR4+ reticle, ensuring accurate holdovers and ranging at any magnification level.

This configuration uses counter-clockwise (CCW) turrets and left-side windage (LW) with the Kahles TWIST GUARD system, which helps prevent accidental adjustments during use. The DLR version also features an EasyRead elevation turret with large numbers for quick dialing during dynamic long-range stages.

Built around a 36 mm main tube, the optic provides a large internal adjustment range (around 29 MRAD elevation and 12 MRAD windage) and precise 0.1 MRAD click adjustments. The parallax adjustment is integrated into the elevation turret and works from about 20 m to infinity, improving ergonomics and speed in the field.

Specifications:

Magnification: 5–40×
Objective lens: 56 mm

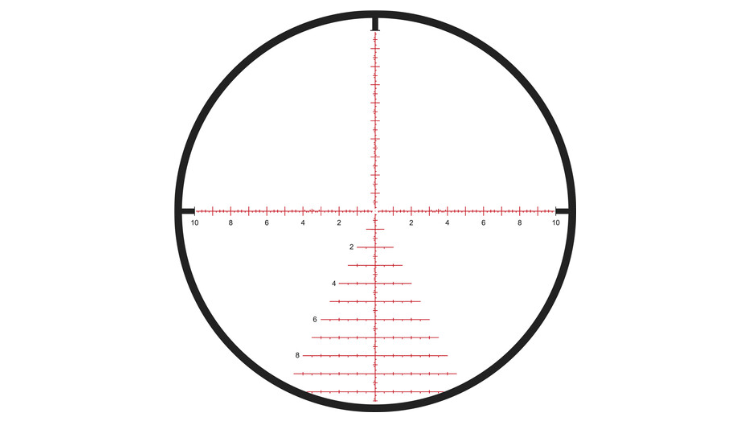

Reticle: SKMR4+ (First Focal Plane, illuminated)
Tube diameter: 36 mm
Adjustment: 0.1 MRAD per click
Elevation / Windage range: ≈29 MRAD / 12 MRAD
Parallax: 20 m to infinity
Length: ≈408 mm
Weight: ≈1110 g
