Description

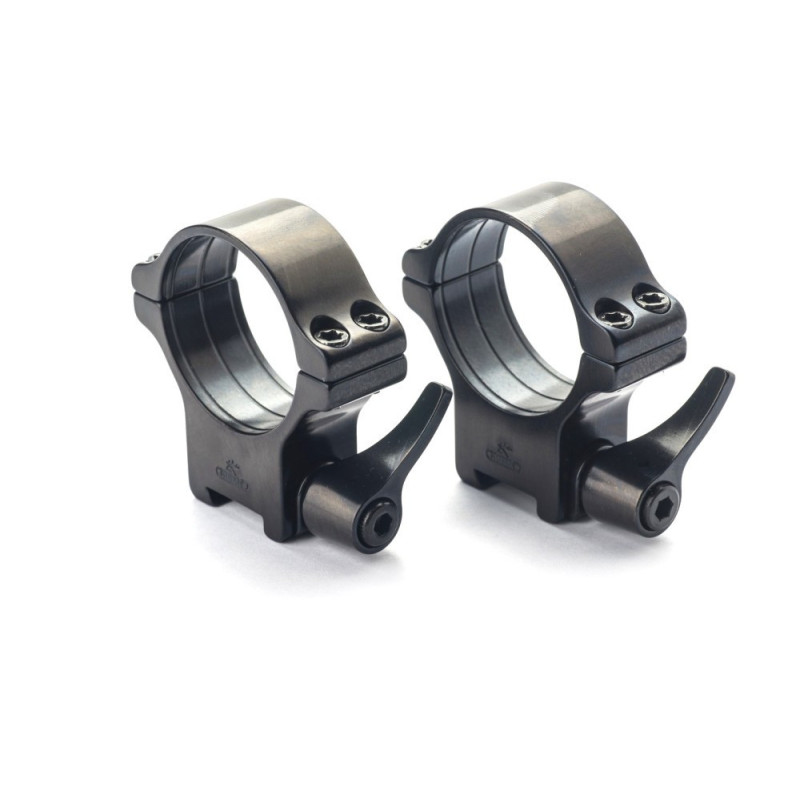

Featuring a secure and highly reliable Quick-Release lever, this mount allows for rapid interchangeability of Optics or quick access to open sights, all while maintaining absolute zero retention.

Key Features:

Rifle Specific Fit (16.5 mm Prism): Designed for the unique 16.5 mm dovetail (prism rail) of the CZ 527 and compatible rifles, ensuring a perfect, non-slip mechanical lock onto the receiver.

30 mm Scope Diameter: Perfectly sized to accommodate the 30 mm main tube diameter of most modern tactical, hunting, and precision riflescopes.6

Quick-Release (QR) Attachment (R): Utilizes a strong, adjustable quick-release lever mechanism. This allows the shooter to remove and reattach the scope in seconds without tools, consistently returning to zero.

Medium-High Profile (H19): The 19 mm mounting height (measured from the top of the dovetail to the center of the scope tube) is an optimal medium-high profile. It offers excellent clearance for scopes with objective lenses up to 50 mm or 56 mm (depending on barrel contour), without raising the scope excessively high above the bore axis.

CNC Steel Construction: Manufactured from solid, high-grade steel using CNC machinery, guaranteeing maximum strength, rigidity, and the ability to withstand heavy recoil.

Technical Specifications:

Specification :Detail

Ring Diameter :30mm

Rail Compatibility :”16.5mm Prism Dovetail (e.g., CZ 527)”

Mounting Height (H) :19mm (Medium-High)

Mounting Style :Roll-Off Two-Piece Rings

Attachment :Quick-Release Lever (R)

Material :High-Grade CNC-Machined Steel

Product SKU :011-16.5-30-19-R
