Description

The MEOPTA ZD 6-24X56 RD – MT223 (MOA) was engineered as a professional long-range riflescope for tactical marksmen and precision shooters requiring reliable shot placement at extended distances. It features a 30mm one-piece aircraft-grade aluminum tube, premium optical coatings, and a large 56mm objective lens for strong low-light performance and image clarity.

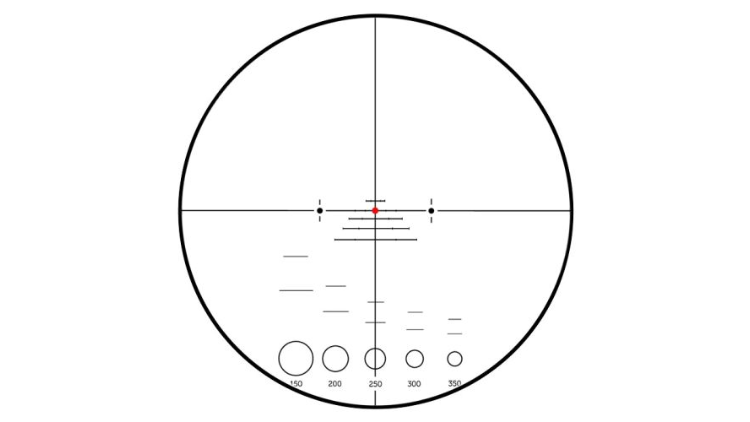

The optic uses an illuminated MT223 reticle in MOA, specifically calibrated for .223 Remington / 5.56 NATO ballistic performance using 52-grain Sierra MatchKing ammunition. The reticle includes range estimation markers and windage holdovers, helping shooters engage targets efficiently at varying distances. The side parallax adjustment ranges from approximately 25 meters to infinity, improving focus and precision for long-range shooting. Meopta’s RD illumination system provides multiple brightness levels for changing light conditions. The scope is also waterproof, fogproof, nitrogen-purged, and shockproof for demanding field use.

Specification:

Magnification 6-24x
Objective Lens Diameter 56 mm
Tube Diameter 30 mm
Reticle Type MT223 (MOA)
Reticle Position Second Focal Plane (SFP)
Illuminated Reticle Yes (RD Illuminated)
Reticle Calibration .223 Rem / 5.56 NATO (52 gr Sierra MatchKing)
Parallax Adjustment Side Focus, 25 m to ∞
Field of View @100m 5.6 – 1.5 m
Eye Relief 89 – 80 mm
Exit Pupil Diameter 9.1 – 2.3 mm
Diopter Adjustment -3 / +3 dpt
Adjustment Click Value 1/4 MOA
Illumination Settings Multiple brightness settings
Waterproof Yes
Fogproof Yes (Nitrogen Purged)
Shockproof Yes
Length Approx. 386 mm (15.2 in)
Weight Approx. 865–870 g
